DC 0~60V,0~5A MS605D DC Power Supply

  • Model: MS605D
  • Shipping Weight: 5kg
  • Manufactured by: OEM

RM990.00

Add to Cart:

Indent Item - Delivery 1-2 weeks

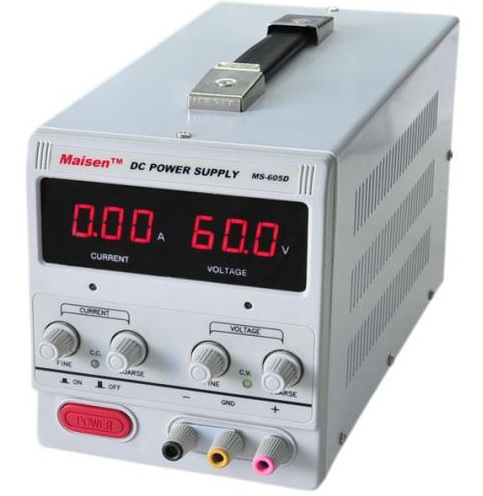

MAISHENG DC 0~60V,0~5A MS605D DC Power Supply



Features:

1.     Thicker steel chassis, beautiful and durable. Handle design for easy handling.

2.      To be more precise the values of the voltage and current, it was deigned coarse and fine adjustment.

3.     It can be automatic conversion with Constant voltage and constant current, so it not only can be used as constant voltage power supply but also can be used as constant current power supply.

4.      Protection: overvoltage protection (OVP), over current protection (OCP), over temperature protection (OTP).

5.      Reasonable Circuit designed, the key components are imported, can be used for 24-hour full load working.

6.      PWM switching pre-regulator, MOS linear adjustment mode, high efficiency, energy saving and environmental protection.

7.     Intelligent fan controlled by temperature.



Applications:

1.      Industrial products aging testing for DC motors, DC fans, car DVD, car audio, resistors, capacitors, etc.

2.      Perfect applied to charge the batteries, it can provide constant current charging, then constant trickle charging with constant voltage, prevent overcharge, battery protection, effectively extending the battery life.

3.    Inverter Industry: It overcome the problem of linear power relay stuck conversion, fast response speed, to meet the instantaneous change in the load requirements.

4.     LED test and aging.

5.     Others.



Parameters:

1.     Voltage Input: AC 220V 50Hz

                            110V 60Hz(be customized)

2.     Voltage Output: DC 0-60V  adjustable

3.     Current Output: DC 0-5A  adjustable

4.     Resolution: voltage 0.1V, current 0.1A

5.      Accuracy:+/-1%+/-1 word

6.      Voltage stability: ≤0.05% +1mV

7.      Current stability: ≤0.1% +10mA

8.      Load stability: CV ≤0.1% +1mV  CC ≤0.1% +10mA

9.      Ripple and noise: CV ≤10mV(RMS) CC ≤20mA(RMS)

10. Cooling method: Intelligent fan controlled by temperature.

11.  Working environment: -10 - 40 °c Relative humidity <80%

12.  Storage environment: -20 - 80 °c Relative humidity <80%

Model

Output voltage

Output current

Display

Display accuracy

MS605D

0-60V

0-5A

3LED display

+/-1%+/-1 digit

Packaging Details
  • Unit Type: piece
  • Package Weight: 5.0kg (11.02lb.)
  • Package Size: 40cm x 20cm x 20cm (15.75in x 7.87in x 7.87in)
