KENNEDY 3D ANALOGUE TESTER KEN3022010K

  • Model: KEN-302-2010K
  • Shipping Weight: 0.89kg
  • Manufactured by: KENNEDY

RM3,750.00

Add to Cart:

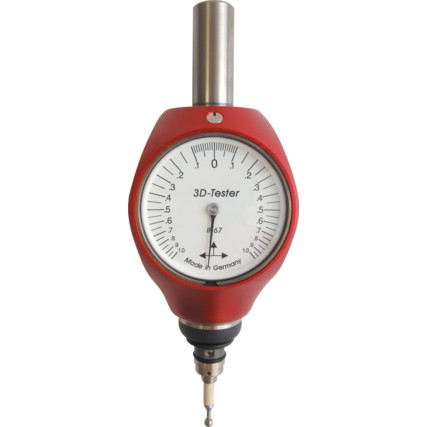

KENNEDY 3D ANALOGUE TESTER KEN3022010K

3D Axis Gauge

The New Generation of NC axis gauging equipment, for quick, accurate setting of all three axes (X, Y, Z) by analogue differential indicator. Suitable for all machine tools with CNC, NC or DRO and also for EDM/spark erosion tools - the stylus is electrically insulated from the spindle. Universal - one tool measures length, height, diameter and centre. The synchronous single needle allows greater needle displacement before reaching ‘12 o'clock’. A positive reading is given regardless of direction of axis movement. No calculations and no ‘trial and error' involved. Increases production and efficiency, reduces job time and operator requirement. The stylus is designed to break on a ‘nominal fracture' before the workpiece or tester can be damaged. Three plug in styli types can be changed in seconds without the use of special tools.
Pre-adjusted to a concentricity of 0.01mm maximum.
Indicator diameter: 50mm.
Clamping shank diameter: 16mm.

a. Measuring length
b. Measuring height
c. Establishing true centre and diameter of bores.
Insert stylus roughly in centre of bore, measure distance A and divide by 2 (P). Measure distance B in Y direction, across point P and divide by 2.
Result: true centre point (M).
Repeat measuring of distance A.

Specification

Property Value
Brand Kennedy
EAN13 Barcode 5036140257498
eCl@ss Code 27209005
Supplier Part No. 3022010K
UNSPSC Code 41111920

Further Information

Property Value
Anvil Diameter
Indicator Diameter 50 mm millimetre
Length 125 mm millimetre
Product Number 106000-2MM
Product Type 3D Axis Gauge
Shank Diameter 16 mm millimetre
Weight 89 g gram
Resolution 0.01 mm millimetre
