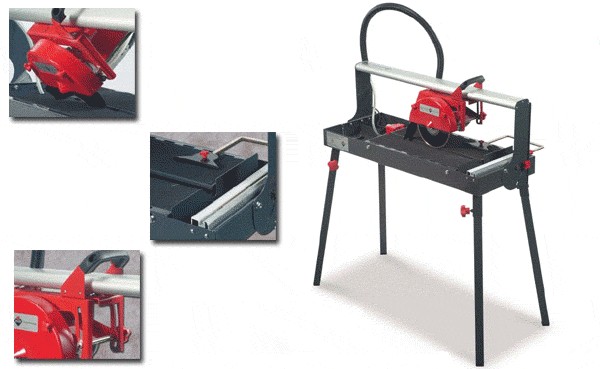

PROTECH  Pedestal Wet Tile Cutter

PDW200 ELECTRIC MITERING TILE SAW Electric construction saw. Ideal for cutting and mitering large-sized ceramic tiles and building materials. Equipped with moveable collapsible 1.5 HP motor  that slides on reinforced aluminum guide. Special long platform. With pump and thermal protector. RPM 2750, straight cut tiles  28" x 28" , diagonal cut tiles 18" x 18" , Cutting Thickness 2",  8" blade Included L 40" x W 18" x 20", weight 100LBS. Motor assembly mounted on fold away sliding bearings for miter cuts. Vertically adjustable mobile head with wall chaser effect. With guides to allow repetitive cuts and adjustable square, platform 17 3/4" x 24 1/2".

Model PDW200
Power-HP 1-1/2
Voltage 230
Amps 15
Hertz (cycle) 60
Phase Single
Blade/ Motor RPM 2750
Blade Capacity 8"
Arbor Size 5/8"
Dept Of Cut 2"
Saw Weight Crated 100
