PROSKIT MT-1710 3-3/4 True-RMS Auto Range Multimeter

  • Model: MT-1710
  • Shipping Weight: 0.5kg
  • Manufactured by: PRO'SKIT

RM185.00

Add to Cart:

Model : MT1710

  Description

AC True-RMS
CAT IV 600V

Features

MT-1710 -3/4 True-RMS Auto Range Multimeter is designed for accurate measurements, Ideal for a wide variety of electrical and electronic testing applications.

Large LCD w/ Backlight
LCD display with backlight function allows for data reading in dark area.

Simple and Intuitive Operation
Comes with a backlit, 3 3/4 digits 3999 counts and auto range functions provide accurate, easy to use and great to understand reading,

Versatile, safe and Accurate

All of its inputs are protected to CE, IEN61010-1 CAT IV 600V safety rated and overload protection ensures uninterrupted operation and long life.

FEATURES:

  • 3 3/4 digits 3999 counts. 0.5% best accuracy.
  • Both Auto and Manual range.
  • CAT IV 600V safety rated.
  • AC True-RMS for accurate measurements.
  • Large backlight LCD display for easy reading.
  • Extra functions?Continuity with beeper?Diode test?Transistor test?Duty cycle?Relativereference?Data hold?Auto power off?Lowbattery indication?Input alert. Ideal for a wide variety of electrical and electronic testing applications.

Specifications



DC Voltage (V)
400m/4/40/400V ±(0.5%+4d)
1000V ±(1.0%+6d)
AC Voltage (V)
True-RMS
40~1kHz(sine and triangular wave)
and 40~200Hz(other wave)?
400mV ±(1.6%+8d)
4/40/400/750V ±(1.0%+10d)
200~1kHz(other wave)?
400m/4/40/400/750V ±(8.0%+15d)
DC Current (A)
400u/4000uA ±(1.0%+10d)
40m/400mA ±(1.2%+8d)
10A ±(1.2%+10d)
AC Current (A) True-RMS
40~1kHz(sine and triangular wave)
and 40~200Hz(other wave)?
400u/4000u/40m/400mA ±(1.5%+10d)
10A ±(2.0%+15d)
200~1kHz(other wave)?
400u/4000u/40m/400m/10A ±(8.0%+15d)
Resistance (Ω)
400Ω ±(0.8%+5d)
4k/40k/400k/4MΩ ±(0.8%+4d)
40MΩ ±(1.2%+10d)
Frequency (Hz)
100/1000/10k/100kHz ±(0.5%+10d)
1M/30MHz ±(0.5%+10d)
Capacitance (F)
10n ±(5.0%+20d)
100n/1u/10u/100uF ±(3.5%+8d)
1/10/100mF ±(5.0%+10d)
Temperature (?/?)
-20~400? (-4~752?) ±(1.0%+5d)
400~1000? (752~1832?) ±(1.5%+15d)
Power source
9V (NEDA 1640/6F22) battery
Size (mm)
190×95×45 mm


This product was added to our catalog on Wednesday 02 December, 2015.

Customers who bought this product also purchased...

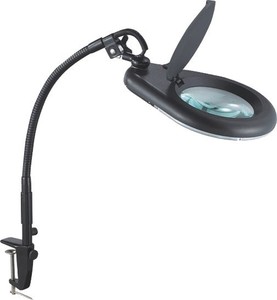

PROSKIT MA-1003MF Desk Type Magnifier Lamp AC 220-240V
